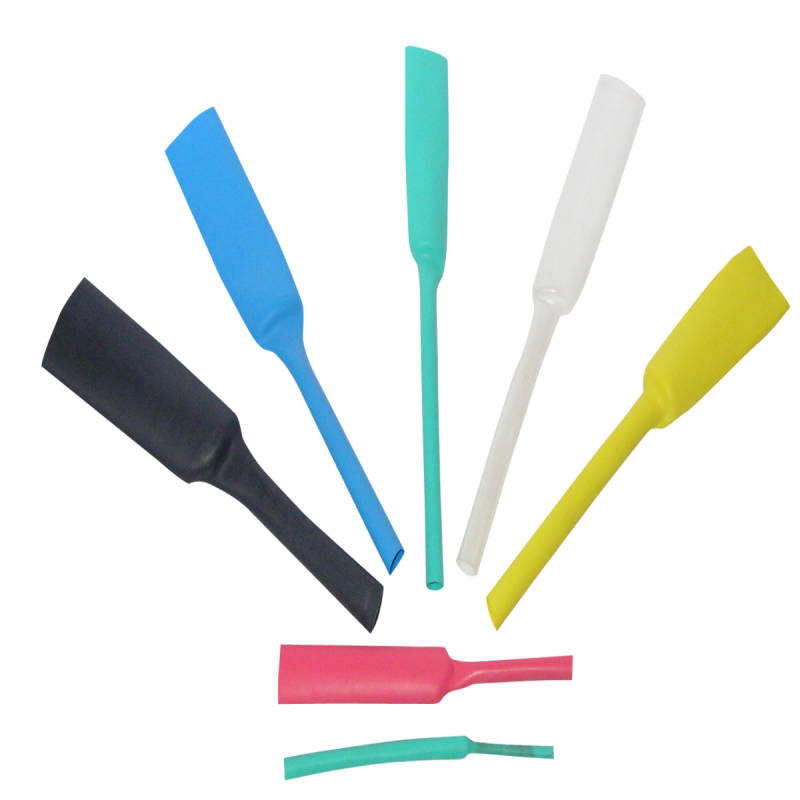

S2 Flexible Polyolefin Thin Wall Heat Shrink Tube


Introduction
A thin wall, flexible, environmental friendly, flame-retardant polyolefin heat shrinkable tube.Suitable for insulation protection, parts identification, mechanical protection, bundling of wires, wire harnesses, and electronic components.

Features
Operating temperature: -40 to 125°C
Minimum full recovery temperature: 125°C
Shrink ratio: 2:1 & 3:1
Environmental friendly, RoHS & ELV compliant
Standard Color: See the below for details
UL224 E341796
Technical Data
Property Test Method Requirement
Tensile Strength ASTM D2671 ≥10.4 MPa
Ultimate Elongation ASTM D2671 ≥200%
Secant modulus 2% ASTM D2671 ≤172MPa
"Heat Aging (158°C/168h)
Tensile Strength
Ultimate Elongation" ASTM D2671 "
≥7.3 MPa
≥100%"
Water absorption (23°C/24h) ASTM D2671 ≤0.5%
Low-temperature flexibility (-40°C/4h) ASTM D2671 No cracking
Heat shock (250°C/4h) ASTM D2671 No cracking, dripping or flowing
Dielectric breakdown ASTM D2671 ≥AC 2500V
Dielectric withstand at 2500 V ASTM D2671 ≥60s
Volume resistivity ASTM D2671 ≥1.0×1014Ω.cm
Flammability (colors only) UL224 VW-1
Copper corrosion (158°C/16h) ASTM D2671 No corrosion
Dimension
Size As supplied(mm) After recovered (mm) "Standard length
(m)"
S2 "Inner diameter
D" "Inner diameter
d (max.)" "Wall thickness
t (nom.)"
Shrink ratio 2:1
0.6 0.9±0.2 0.4 0.28±0.10 200
0.8 1.1±0.2 0.5 0.28±0.10 200
1.0 1.6±0.3 0.65 0.35±0.10 200
1.5 2.1±0.3 0.85 0.35±0.10 200
2.0 2.6±0.4 1.0 0.40±0.10 200
2.5 3.1±0.4 1.3 0.40±0.10 200
3.0 3.6±0.4 1.5 0.45±0.10 200
3.5 4.1±0.4 1.8 0.45±0.12 200
4.0 4.6±0.4 2.0 0.48±0.12 200
4.5 5.1±0.5 2.3 0.50±0.12 100
5.0 5.6±0.5 2.5 0.52±0.12 100
5.5 6.1±0.5 2.8 0.52±0.12 100
6 6.8±0.5 3.0 0.55±0.12 100
7 7.8±0.5 3.5 0.55±0.12 100
8 8.8±0.5 4.0 0.60±0.12 100
9 9.8±0.5 4.5 0.60±0.12 100
10 10.8±0.5 5.0 0.60±0.12 100
11 11.8±0.5 5.5 0.60±0.12 100
12 12.8±0.5 6.0 0.60±0.12 100
13 13.8±0.5 6.5 0.70±0.12 100
14 14.9±0.5 7.0 0.70±0.12 100
15 16.0±0.5 7.5 0.70±0.12 100
16 17.0±0.5 8.0 0.75±0.15 100
17 18.2±0.7 8.5 0.75±0.15 100
18 20.0±0.8 9.0 0.75±0.15 100
20 22.0±1.0 10.0 0.85±0.15 100
22 23.5±1.0 11.0 0.85±0.15 100
25 26.5±1.0 12.5 0.95±0.18 50
28 29.0±1.0 14.0 0.95±0.18 50
30 32.0±1.5 15.0 1.00±0.20 50
35 37.0±1.5 17.5 1.00±0.20 50
40 42.0±2.0 20.0 1.05±0.20 50
45 47.0±2.0 22.5 1.05±0.20 25
50 ≥50 25 1.05±0.20 25
60 ≥60 30 1.10±0.20 25
70 ≥70 35 1.20±0.20 25
80 ≥80 40 1.30±0.20 25
90 ≥90 45 1.30±0.20 25
100 ≥100 50 1.30±0.30 25
120 ≥120 60 1.40±0.30 25
150 ≥150 75 1.40±0.30 25
180 ≥180 90 1.60±0.30 25
Shrink ratio 3:1
1.5/0.5 2.2±0.4 0.5 0.45±0.12 200
3/1 3.8±0.4 1.0 0.55±0.12 200
4.5/1.5 5.2±0.5 1.5 0.60±0.12 100
6/2 6.6±0.5 2.0 0.65±0.12 100
9/3 9.7±0.5 3.0 0.80±0.15 50
12/4 13.2±0.8 4.0 0.85±0.15 50
15/5 16.0±0.8 5.0 0.90±0.15 50
18/6 19.5±0.8 6.0 1.00±0.20 50
24/8 26.5±1.0 8.0 1.20±0.20 25
30/10 32.0±1.5 10.0 1.20±0.20 25
39/13 41.0±1.5 13.0 1.50±0.30 25
50/16 ≥50 17 1.65±0.30 20
60/20 ≥60 20 1.75±0.30 20
70/23 ≥70 23 1.75±0.30 20
80/26 ≥80 26 1.85±0.30 20
90/30 ≥90 30 2.15±0.30 20
100/33 ≥100 33 2.35±0.30 20
Cross Reference
Tyco-Raychem: CGPT & Versafit 3X & Versafit V2
